Skylo Modules
Die Auswahl des richtigen Moduls für Ihr IoT-Gerät ist entscheidend für optimale Leistung und Interoperabilität in unseren Netzen. Wir bieten eines der größten Portfolios an vom Netzbetreiber getesteten und zertifizierten Modulen der Branche. Die breite Auswahl ermöglicht maximale Flexibilität im Design, eine schnellere Markteinführung sowie geringere Validierungs- und Zertifizierungskosten.
Module -
Notecard for Skylo
HIGHLIGHTS
- All-in-one connectivity: Combines global cellular, WiFi, and Skylo satellite fallback.
- Easy integration: Simple JSON interface replaces complex AT commands.
- Hardware security: Built-in encryption via STSAFE Secure Element.
- Low-power tracking: Energy-efficient location tracking via GPS and accelerometer.
- Compact form factor: Easily replaceable M.2 plug-in module (30x42 mm).
- Ambient operating temperature: -35°C to 75°C
- Storage temperature: -40°C to 85°C
Module -
Starnote for Skylo
HIGHLIGHTS
- Affordable satellite backup: NTN fallback accessory for paired Notecards
- No monthly fees: Includes 10KB data, with strictly pay-as-you-go billing afterwards
- Ultra-low power: Draws less than ~4µA at 5V, ideal for battery-powered use
- Seamless integration: Directly uses the paired Notecard's simple JSON interface
- Global NTN coverage: 3GPP Rel-17 via the Skylo network for remote areas
- Flexible hardware: Available with onboard antennas or u.FL connectors (M.2 / JST)
Module -
RMM-T1
HIGHLIGHTS
- MediaTek MT6825 NTN chipset, compatible with the 3GPP Rel. 17 IoT-NTN standard
- Skylo certified & FCC approved for L-band and S-band satellite connections
- Secure data transmission & two-way communication for remote and challenging environments
- Rugged design for outdoor deployment in logistics, agriculture, and maritime industries
Module -

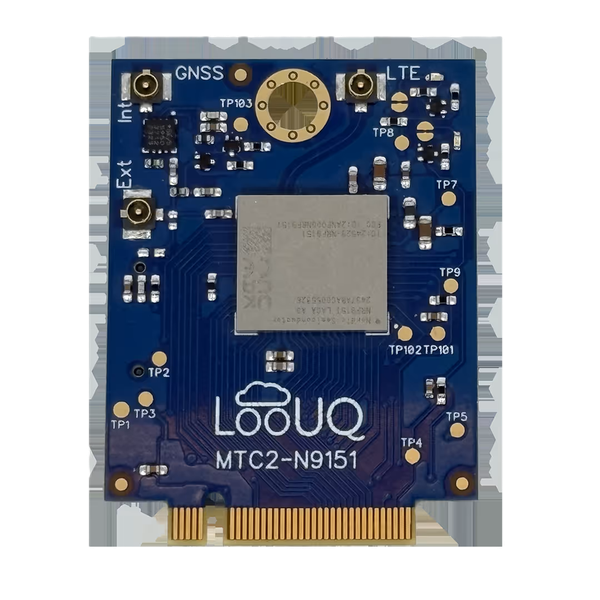

MTC2-N9151
HIGHLIGHTS
- Cellular/satellite modem: Designed for reliable machine-to-machine (M2M) communications
- Nordic nRF9151 SIP: Powerful System-in-Package featuring a dedicated ARM Cortex-M33 application core
- Dual-core architecture: Includes a separate core dedicated strictly to modem functions
- Integrated tracking: Built-in GNSS receiver for precise positioning
- Easy integration: Convenient drop-in design for effortless addition to new product developments
Module -

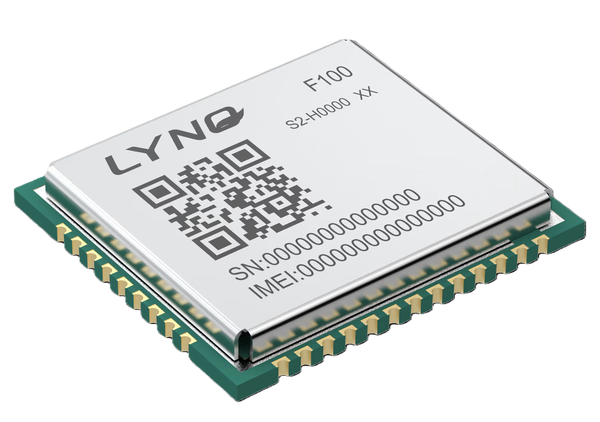

F100
HIGHLIGHTS
- 3GPP R17-compliant NTN module
- enabling satelite communication
- supports N255, 256 and B23 frequency bands
Module - 4G

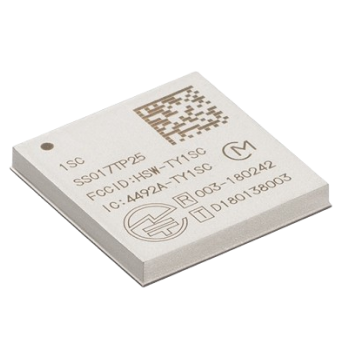

1SC-NTN
HIGHLIGHTS
- Altair ALT1250
- Certified: FCC / IC / RED / TELEC / KC / NCC / GCF / PTCRB
- Transmit Power: +23dBm max
- Supports a wide temperature range: -40°C to 85°C
Module - NB-IoT, LTE-M

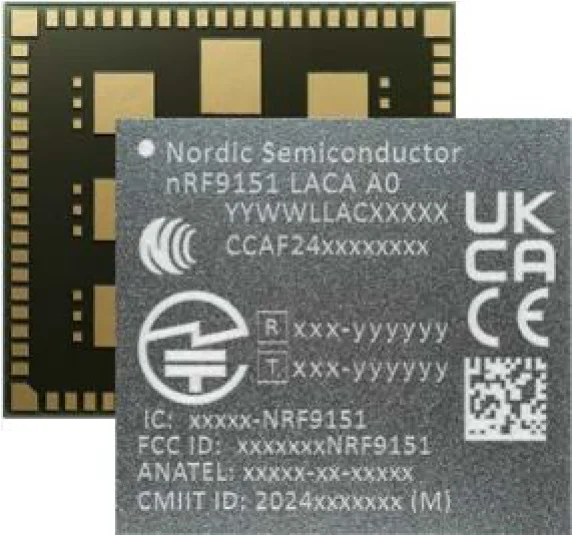

nRF9151
HIGHLIGHTS
- Multimode LTE-M/NB-IoT modem with DECT NR+ support and GNSS
- High integration (NB/M1 baseband, module, application CPU (Cortex-M33), RAM+Flash, GPS) and small size
- 700-2200 MHz LTE band support
- Fully integrated SiP for cellular IoT and DECT NR+
- Security (ARM TrustZone, Key Management Unit, ARM CryptoCell 310)
- Support for Non-Terrestrial Network (NTN) in a future firmware release
Module - 4G, NB-IoT

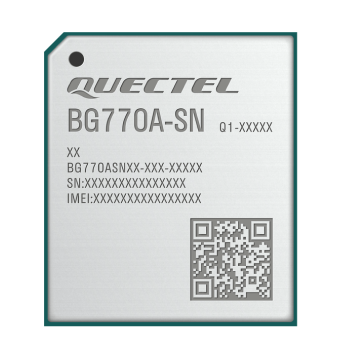

BG770A-SN
HIGHLIGHTS
- Extremely compact LTE Cat M1/ NB1/ NB2/ NB-IoT NTN
module with ultra-low power consumption - Global coverage over the GEO constellation
- Super slim profile in LGA package
- Embedded with abundant Internet service protocols
- Support DFOTA
- A rich set of external interfaces (including RF control
interfaces) that ensure convenient applications - Fast time-to-market: reference designs, evaluation tools
and timely technical support minimize time and efforts in
design and development
Module - 4G, NB-IoT

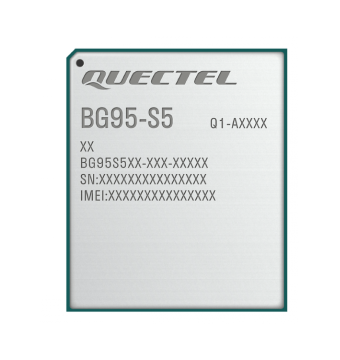

BG95-S5
HIGHLIGHTS
- NTN Satellite communication module
- IoT-NTN/ LTE Cat M1/ Cat NB2/ EGPRS module with Ultra-low power consumption
- Integrated RAM/ flash in the baseband chipset
- Compact SMT form factor ideal for size-constrained applications with tight space
- Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
- Abundant embedded Internet service protocols
- Robust mounting and interfaces
Module -

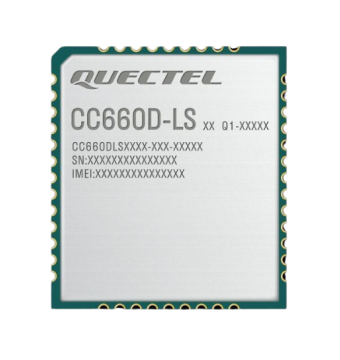

CC660D-LS
HIGHLIGHTS
- NTN satellite communication module
- Ultra-low power consumption
- Super-high sensitivity
- Low voltage power supply: 2.2–3.6 V
- LCC + LGA package, easy for large-volume manufacturing
- Abundant embedded Internet service protocols
- QuecOpen® supported to save the MCU
Module - 2G, 4G
HL781x
HIGHLIGHTS
- 3GPP Rel. 14 Cat-M1/NB2 support (the HL7812 additionally includes 2G fallback)
- Ultra-low power consumption and high transmit power (23 dBm) for improved indoor and underground coverage
- Compact CF3 LGA form factor (15x18 mm) including integrated GNSS (GPS/Glonass) for location services
- High end-to-end security thanks to an embedded Secure Element and free lifetime FOTA (Firmware Over-The-Air) updates
- Industrial temperature range (-40 °C to +85 °C) for demanding IoT environments
Module -

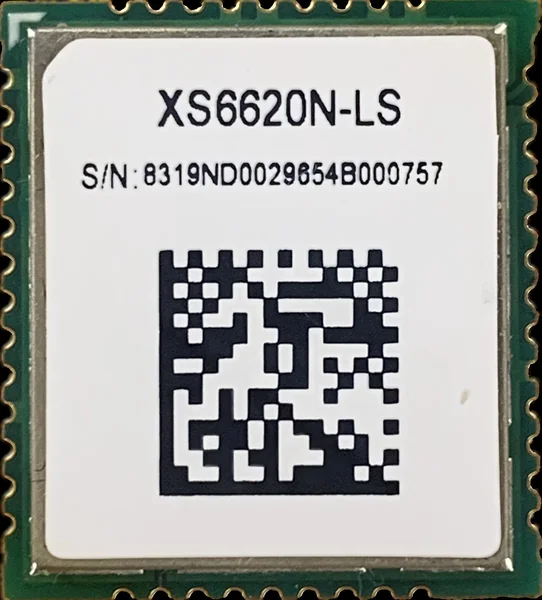

XS6620N-LS
HIGHLIGHTS
- 3GPP Rel-17 IoT-NTN standard: Reliable satellite communication for the Internet of Things
- Versatile frequency bands: Supports both L-band (B255) and S-band (B256/23)
- Ultra-compact form factor: Measuring just 17.7 x 15.8 x 2.2 mm, ideal for size-constrained applications
- Highest cost-efficiency: The most cost-effective module of its kind in the industry
